Why it issues: The JEDEC Stable State Expertise Affiliation has launched a brand new Crossover Flash Reminiscence (XFM) specification for NAND storage, designed to exchange the prevailing M.2 kind issue. Its considerably smaller kind issue might assist to deliver replaceable storage into smaller gadgets which have historically solely been capable of match soldered reminiscence, however dimension is not all that issues on that entrance.

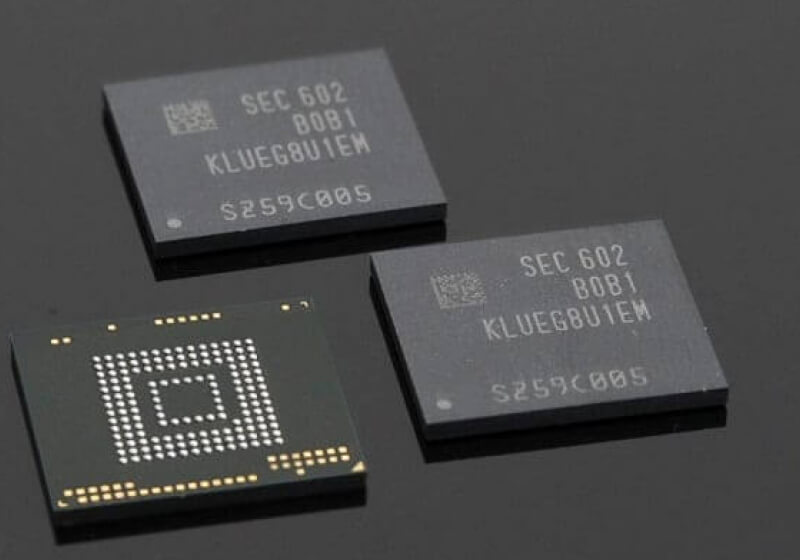

The JEDEC JESD233 XFM Embedded and Detachable Reminiscence System (XFMD) customary makes use of the NVMe logical interface over a PCI Categorical bodily interface, which means that XFMD playing cards will seem to their host gadgets simply as an M.2 stick would. Though the usual makes use of just one or two lanes of the interface, the bandwidth of PCIe Gen 4 nonetheless offers it far increased information switch speeds than UFS chips (like these pictured above), soldered eMMC storage, and detachable SD storage.

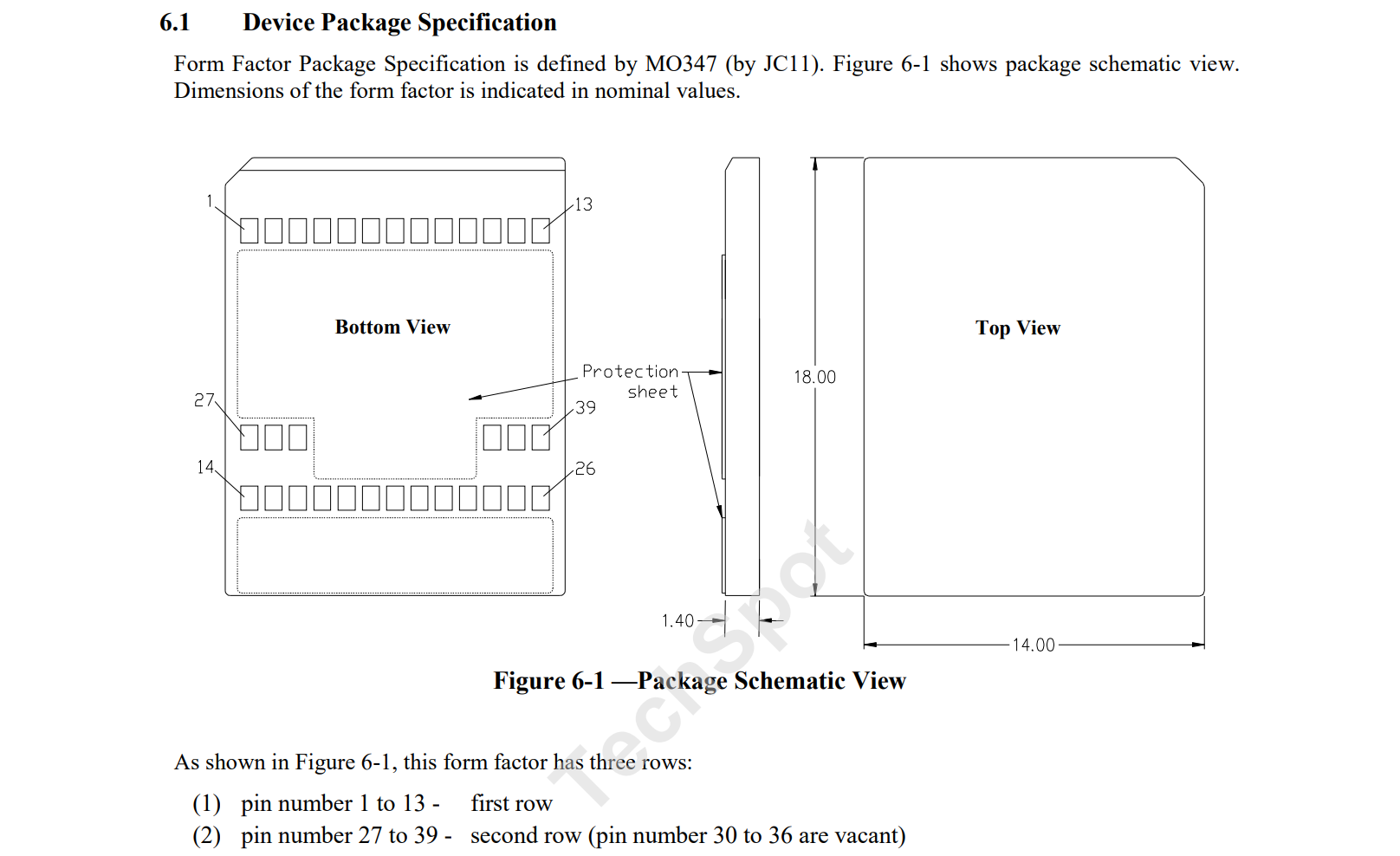

The final is a very essential level of comparability, on condition that the XFMD described within the JEDEC specification measured simply 18 x 14 x 1.4mm (15 x 11 x 2.1mm) is carefully comparable in dimension to a microSD card.
JEDEC says that the smaller customary would enable use in eventualities that might usually be restricted to soldered storage, similar to IoT and embedded functions — though additionally notes that different extremely transportable gadgets would profit from the brand new kind issue, similar to VR headsets, drones, and ultraportable laptops.
Reminiscence producer Kioxia has spoken out in favor of the brand new kind issue, with senior director Atasushi Inoue claiming that the XFMD customary “can be used as a recreation changer for semi-removable storage in lots of digital and IOT gadgets, benefiting from its balanced efficiency, small dimension, and simple upkeep.”
MediaTek additionally endorsed XFM, though it described the specification as enabling “new, expandable storage choices for finish customers,” in distinction to Kioxia’s view of semi-removable storage.
Nevertheless, whereas the desired XFMD is sufficiently small to probably change some soldered options, PCIe attracts extra energy than the M-PHY interface at the moment utilized in UFS options, which could damage adoption in notably ultraportable battery-powered functions.
As well as, the info sheet makes no point out of DRAM caches which might be key enablers of the efficiency of present high-performance SSDs, and if these are absent then XFMDs may discover it troublesome to unlock the complete velocity benefits of NVMe over their UFS or eMMC counterparts.
